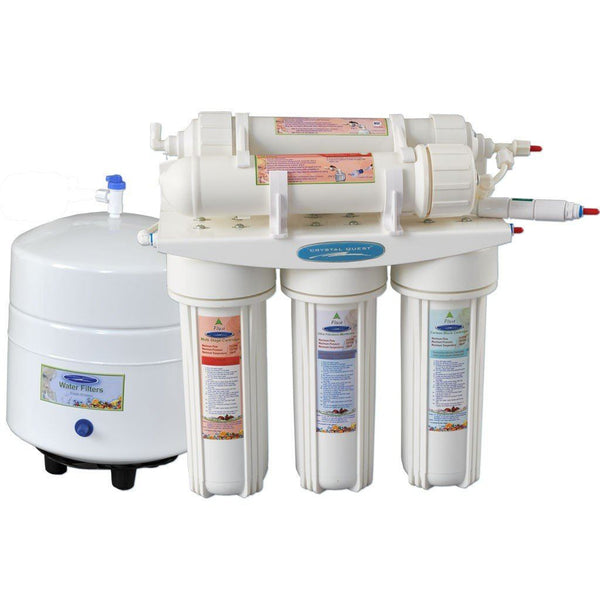

Crystal Quest Thunder 1000C Reverse Osmosis System
Key Features and Benefits:
- 12 stages of filtration
- Designed for Easy In Home Installation.. No Plumber needed
- 100 gallons quality water per day
- Removes more than 500 contaminants from water
- 5 reconfigurable filter cartridge components
- 4 gallon steel pressurized holding tank
- Compact design that can easily fit beneath the kitchen sink
- Removes virtually all Drug and Pharmaceutical remnants
The Thunder 1000C is the finest 12-stage RO System. The filtration stages are distributed into 5 replaceable cartridges which effectively removes up to 99.9% of undesirable contaminants and particles as small as 1/1000 of a micron by forcing untreated water through a semi-permeable membrane. Pressure forces the water to flow in the reverse direction to the direction of flow in natural osmosis through a membrane to capture most contaminants. Filter components include the standard multi-stage(6-stage) cartridge, RO membrane, UF membrane, Solid Carbon cartridge, GAC or coconut shell and the Eagle Redox Alloy(KDF Media) cartridges. Thunder 1000C systems can produce up to 100 gallons of top quality water per day and have compact designs that can easily fit beneath the kitchen sink.
Water travels through 12 stages of filtration:
In stage 1
Water travels through a 5 micron solid carbon cartridge for removing volatile organic carbon compounds (VOC's), insecticides, pesticides and industrial solvents and traps particles larger than 5 micron including sediment, silt, sand and dirt. It also helps to extend the life of the system.
In stage 2Water passes through a .01 micron Ultrafiltration (UF) membrane. Ultrafiltration (UF) is an important purification technology used for the production of high-purity water. UF is effective for the removal of colloids, proteins, bacteria, viruses, parasites, protozoa and pyrogens (e.g., gram-negative bacterial endotoxins), other organic molecules larger than .01 micron, and most other water contaminants known today.
In stage 3
Water flows through pre one - micron filter pads (1 micron equals 1/25,000th of an inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.
In stage 4
Water passes through granulated activated carbon (GAC). GAC is universally recognized and widely used as an effective adsorbent for a wide variety of organic contaminants, such as chlorine (99.9%), chemicals linked to cancer (THM's, benzine) pesticides, herbicides, insecticides, volatile organic compounds (VOC's), PCB's, MTBE's and hundreds of other chemical contaminants that may be present in water, bad taste, and odors from your drinking water. Read more about GAC
In stage 5
Water flows through the ion exchange resin, reducing heavy metals such as lead, copper, aluminum, and water hardness.
In stages 6 & 7
Water flows through 2 beds of Redox (Oxidation/reduction process) media made of a special high-purity alloy blend of two dissimilar metals - copper and zinc. Representing a new and unique way of water processing medium which by its natural process of electrochemical oxidation/reduction and adsorption action reduces and/or removes many unwanted contaminants from water. It is a major advancement in water treatment technology that works on the electro-chemical and spontaneous-oxidation-reduction (REDOX) principles. Chlorine is instantaneously and almost inexhaustibly oxidized.
Iron and hydrogen sulfide are oxidized into insoluble matter and attach to the surface of the media. Heavy metals such as lead, mercury, copper, nickel, chromium, cadmium, aluminum, and other dissolved metals are removed from the water by the natural process of electrochemical process. They are attracted to the surface of the media, much like a magnet. The media inhibits bacterial growth throughout the entire unit.
In stage 8
Water flows through another one-micron filtration pad for further reduction of undesirable particles. The end result is a great reduction or elimination of a wide variety of contaminants.
In stage 9
Water passes through a CRYSTAL QUEST reverse osmosis membrane, which removes and filters particles as small as 1/1000 of a micron as most inorganic chemicals (such as salts, metals, minerals) most microorganisms including cryptosporidium and giardia, and most inorganic contaminants.
In stage 10 and 12
Water flows through another one - micron filter pads(1 micron equals 1/25,000th of an inch), which removes suspended particles such as silt, sediment, cyst (Giardia, Cryptosporidium), sand, rust, dirt, and other undissolved matter.
In stage 11
Water passes through granulated activated carbon (GAC).
