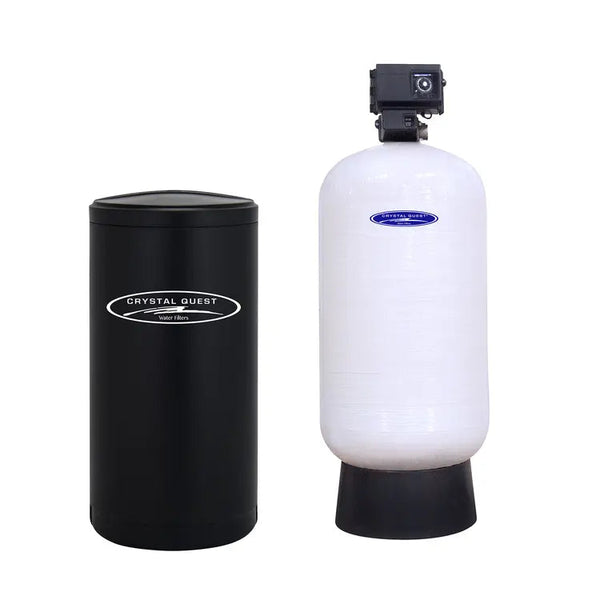

Lead Removal Water Filtration System 185 GPM
CQE-CO-02179
Features
- Timer Control Valves
- Heavy-Duty Composite Fiberglass Tanks
- Heavy-Duty Brine Tank
- High Flow Distributor
- All brass, motor driven control valve with fully adjustable regeneration cycles
- Self-adjusting backwash controller
- Flow controller to limit backwash flow
- Engineered for commercial & industrial use
Benefits
- Reduced water consumption
- Reduced salt usage
- Engineered for commercial & industrial use
Add-Ons*
- Metered Control Valve
- Metered to regenerate based on demand
- Backwash or regeneration bypass
- 3200NT Controller
- No Hard Water Bypass
- NXT Upgrade Controller
- Duplex parallel, twin alternating, triplex (progressive)
- Optional skid mounting for tanks
*If you are interested in our available Options, please call to have them added to your system.
Lead (Pb) is a soft and heavy metal used in a surprisingly wide range of industrial applications and processes. It is a highly poisonous neurotoxin that can accumulate in both soft tissue and bone, leading to brain and nervous system disorders. Exposure to lead is especially dangerous for young and developing children. Most commonly it is introduced to the human body by ingestion of contaminated water and food, although it can be introduced through inhalation and direct contact as well.
How It Works
Our SMART Multimedia is a special house blend of 2 types of coconut-shell GAC (including Catalytic) with 2 types of Eagle Redox Alloys® (9500 & 6500) and anion exchange resin. This blend effectively reduces and removes heavy metals, chlorine & chloramine, pesticides & herbicides, pharmaceutical by-products & other inorganic substances such as petroleum byproducts. This blend will help the oxidation process of the lead for easier removal. To read about the ERA® Oxidation/Reduction Process, click here. In addition to the oxidation process, we also include the Crystal Quest Eagle Softener Resin which is a strong acid cation exchange resin. It should be regenerated with either potassium chloride or sodium chloride. Typically, it requires about 10% more salt to regenerate with potassium chloride salt when compared to sodium chloride salt. The advantage of potassium salt is that it does not contribute to a high sodium diet and the backwash can be discharged onto a lawn or garden. Sodium chloride salt will kill plants, so it must be discharged into a sewer system. Salt and Iron Out remove iron levels up to 4 ppm. Media can be regenerated at 8, 12 and 15 lbs. per ft3 salt dosages.
| Service Flow Rate ( GPM) | ||||||||
|---|---|---|---|---|---|---|---|---|
| 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 | |
| Capacity (gallons) | 90,000 | 120,000 | 210,000 | 300,000 | 450,000 | 600,000 | 900,000 | 1,200,000 |
| Model | CQE-CO-02174 | CQE-CO-02175 | CQE-CO-02176 | CQE-CO-02177 | CQE-CO-02178 | CQE-CO-02179 | CQE-CO-02180 | CQE-CO-02181 |
| Valve | 2510 | 2850 | 2900 | 2900 | 3150 | 3900 | 3900 | 3900 |
| Type | Single | Single | Single | Single | Single | Single | Single | Single |
| Pipe Size | 1.5" | 2" | 2" | 2" | 2" | 3" | 3" | 3" |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Cu. Ft. Resin | 3 | 4 | 7 | 10 | 15 | 20 | 30 | 40 |
| Mineral Tank Size (in.) | 14x65 | 16x65 | 21x62 | 24x72 | 30x72 | 36x72 | 42x72 | 48x72 |
| Brine Tank Size (in.) | 24x41 | 24x41 | 24x50 | 30x50 | 39x48 | 36x90 | 42x60 | 50x60 |
| Service flow (gpm) | 14 | 20 | 35 | 60 | 75 | 185 | 200 | 280 |
| Peak flow (gpm) | 22 | 41 | 60 | 95 | 140 | 250 | 270 | 360 |
| Backwash flow (gpm) | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 |
| Space Required (in.) (WxDxH) | 48x26x73 | 50x26x84 | 56x26x75 | 64x32x87 | 79x41x90 | 85x41x90 | 94x44x90 | 114x50x96 |
| 15 | 20 | 35 | 60 | 75 | 185 | 200 | 280 | |
| Service Flow Rates (GPM) | ||||||||
