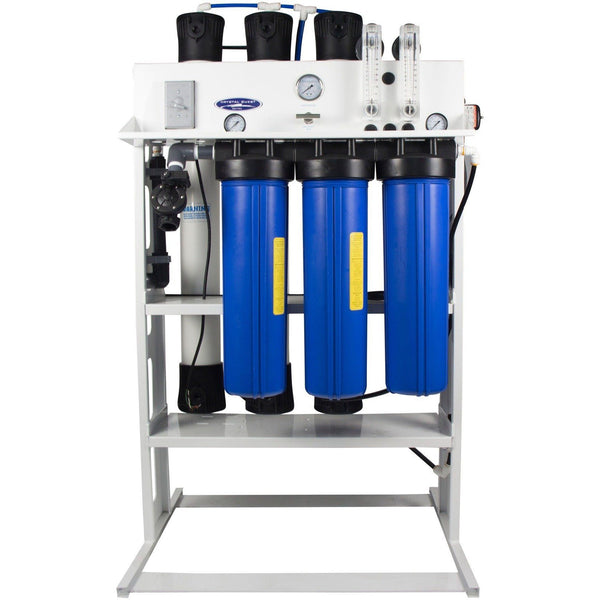

Crystal Quest Commercial Reverse Osmosis 5,000 GPD Water Filter System
SPECIFICATIONS
- Vertical Design
- Gallons Per Day: 5000 @ 77° F
- Dimensions (Approx.): 30" x 38" x 47"
- Weight (Approx.): 250 lbs.
- Concentrate Re-Circulate: Optional
- Auto Flush: Optional
- Element Size (in.): 4040 TFC HF1
- Elements (Qty.): 3
- Motor HP: 1.5
- Voltage: 110 or 220 Volts AC
- Hertz: 60 or 50 cycles
- Feed Connection: 1"
- Product Connection: 1"
- Waste Connection: 1"
- Minimum Feed Pressure: 45 psi
- Minimum NaCl - % Rejection: 96%
- Minimum Feed (GPM): 7
- Maximum Hardness: 15 Grains / Gallon
- Maximum TDS: 2000 ppm
- Operating Pressure: 150 psi
- Maximum NaCl - % Rejection: 98.5%
- Maximum Feed (GPM): 15
- pH Range: 3 - 11
- Maximum Temperature: 105° F
- Membrane: Three 4" x 40" TFC HF1 Membranes, For maximum rejection of impurities and high flow.
- Membrane Housing: Three 4" x 40" Membrane Housing, Features a patented.
- Pump & Motor: One 1.5 HP Multistage Pump and Motor, 110 or 220 volts AC, 60 or 50 hertz, single phase, Designed for continuous high pressures.
- Frame: Aluminum, White Powder Coated, Corrosion resistant, and light weight.
- Sediment Filter: One 4.5" x 20" Big White 5 Micron Sediment Filter, Removes sediments and protects the system.
- Carbon Block: One 4.5" x 20" Big White 5 Micron Carbon Block, Removes chlorine, odor, and taste from incoming feed water.
- GAC/ERA Filter: One 4.5" x 20" Coconut Shell GAC/Eagle Redox Alloy Filter.
- Filter Housing: Three 4.5" x 20" Big Blue Double O-Ring Filter Housings, Offers durability and improved sealing capabilities.
- Pressure Gauges: Two 2.5" Gauges, 0-300 PSI, Panel Mounted Glycerin Filled and Two 1.5" Gauges, 0-160 PSI, Top Mounted Dry Gauges, For monitoring the system's operating pressure, the filter and carbon operating pressure.
- Low Pressure Switch: One Low Pressure Switch, Safety device to protect the pump from running dry when there is insufficient feed water pressure.
- High Pressure Switch: One High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi, and stops when the pressure reaches 60 psi.
- Solenoid Valve: One Solenoid Valve with Manual Override, 110 or 220 Volts AC, 60 or 50 hertz, Assists with the on/off functionality of the system.
- Concentrate Valve: One 1/2" Stainless Steel Needle Valve, Regulates the product to waste ratio (systems recovery).
- Switch: One Manual On/Off Switch.
- Flow Meters: One Product (0-10 GPM) & One Waste (0-10 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
- Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection
Optional Features:
- Stainless Steel Housings: Two 4” x 40” Stainless Steel Membrane Housings 3/8” FNPT
- TDS Meter: One Panel Mount TDS Meter, Provides you with accurate readings of the feed and product water quality.
- Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
- Re-Circulation Flow Meters: One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust waste re-circulated.
- Computer Controller: One Computer Controller, 110 or 220 volts AC, with pre-treat lockout, tank full contacts, low pressure monitoring, and alarm.
- Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
- Additional cost will apply to listed price for custom modification based on water laboratory test report.
