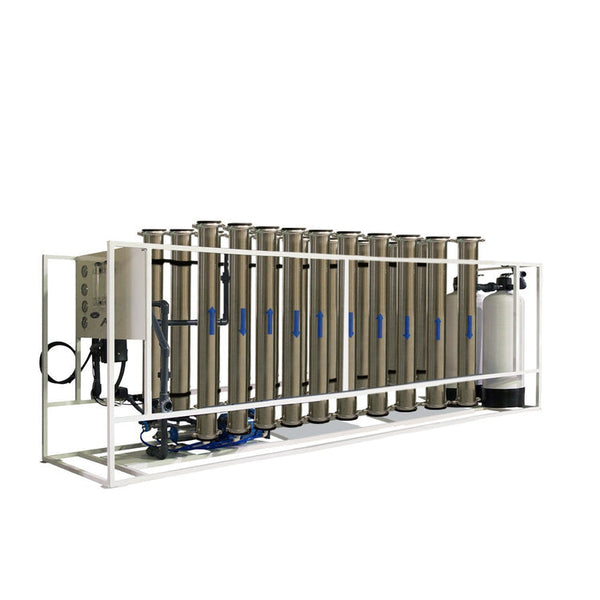

Crystal Quest Heavy Commercial Reverse Osmosis 115,000 GPD Water Filter System
CALL or email us Today for a customized quote. We have Technical Experts available to answer any questions.
602-699-5125
mark@purewaterguys.com
- Horizontal Design
- 115K @ 77° F: Gallons Per Day
- Weight (Approx.): NA
- Concentrate Re-Circulate: Optional
- Auto Flush: Optional
- Element Size (in.): 4040 TFC HF
- Elements (Qty.): 20
- Motor HP: 5
- Voltage: 110 or 220 Volts AC
- Hertz: 60 or 50 cycle
- Feed Connection: 2"
- Product Connection: 1.5"
- Minimum Feed Pressure: 45 psi
- Minimum NaCl - % Rejection: 96%
- Minimum Feed (GPM): 30
- Maximum Hardness: 15 Grains / Gallon
- Operating Pressure at Unit Pump Head: 150 psi
- Maximum NaCl - % Rejection: 98.5%
- Maximum Feed (GPM): 50
- pH Range: 3 - 11
- Maximum Temperature: 105° F
- Membrane: Twenty 4" x 40" TFC HF1 Membranes
- Membrane Housing: 4" x 80" Membrane Housings
- Pump & Motor: Grundfos 3 HP Motor and Stainless Steel Pump
- Frame: Aluminum White Powder Coated Frame
- Bag Filter: 32” Rosendale Bag Filter, 10 Micron Filter
- Cartridge Filter: 2.5" x 40" Coconut Shell Granulated Activated Carbon and Eagle Redox Alloy Filter.
- Chemical Injection: Pulsafeeder 30 Gallon Chemical Feed System
- Pressure Gauges: 2.5" Gauge, 0-300 PSI, Panel Mount Glycerin Filled, and 1.5" Gauge, 0-160 PSI, Top Mount, Dry Gauge
- Low Pressure Switch: Square D Low Pressure Switch
- High Pressure Switch: One Square D High Pressure Switch, Automatically starts when the tank pressure falls below 40 psi, and stops when the pressure reaches 60 psi.
- Solenoid Valve: Solenoid Valve with Manual Override
- Computer Controller: Rotrol S-150 Computer Controller, 220 volts AC, single phase, with built-in TDS monitor - pre-treat lockouts, tank full contacts, magnetic motor starter, low pressure monitoring, and alarms.
- Flow Meters: One Product (0-20 GPM) & One Waste (0-20 GPM) Flow Meters
- Easy Maintenance & Operation: CRYSTAL QUEST® commercial reverse osmosis systems feature a compact design and have all of their components strategically located for easy access and inspection.
- Stainless Steel Housings: Two 2.5” x 21” PuroTech Stainless Steel Membrane Housings 3/8” FNPT
- Float Switch: One Mechanical Float Switch, For atmospheric storage tank applications.
- Flow Meters: One Product (0-2 GPM) & One Waste (0-5 GPM) Flow Meters, Enables operator to accurately adjust product to waste ratio and monitor systems performance.
- Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a % of the waste water and feeding it back into the system.
- Additional cost will apply to listed price for custom modification based on water laboratory test report.
Ongoing Maintenance Costs:
-
2.238 KW is the energy consumption of this unit.
- RO Membrane 4” x 40” (CQE-RC-04086)
- Quantity needed – (14)
- Retail price - $339 per membrane
- Estimated life – 24–36 months (based on inlet water)
- SMART Media (CQE-RM-05017) for pre filter tank
- Quantity needed – 1 cubic foot
- Retail price - $349
- Estimated life – 500,000 – 1,000,000 gallons (Based on inlet water)
- Turbidity Media (CQE-RM-05009) for pre filter tank
- Quantity needed – 1 cubic foot
- Retail price - $229
- Estimated life – 500,000 – 1,000,000 gallons (Based on inlet water)
