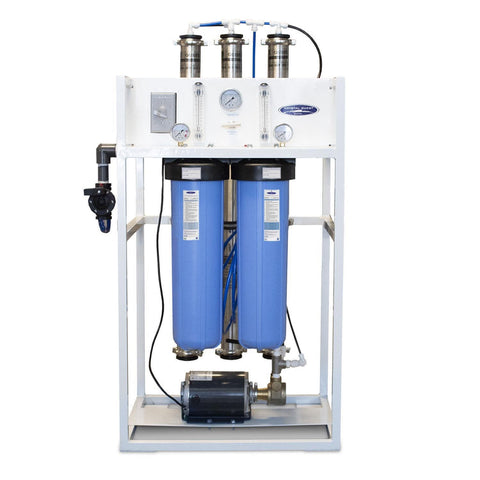

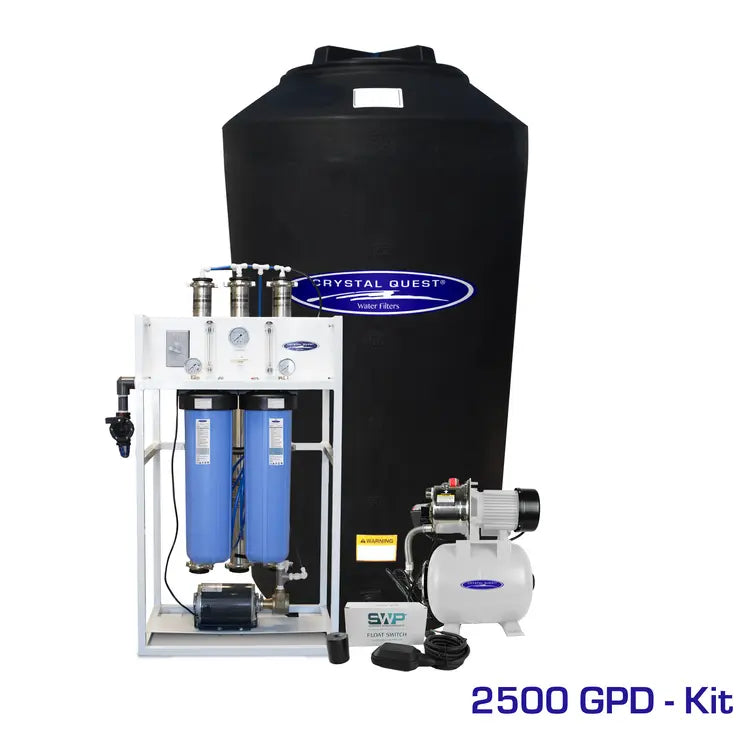

Crystal Quest Commercial R O Filtration System 2500 GPD w/ 165 Gallon Storage Tank Kit

Standard Features:

• Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
• Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
• Brass Rotary Vane High-Pressure Pump designed for continuous use and built-in protection for loss of feedwater protection
• High-Efficiency Carbonate Motor
• SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
• SWP Flow meter: to display permeate and concentrated water flow
• SWP 0-100 psi Pre-filter pressure gage Indicator to aids on timely cartridges change
• SWP 0-300 psi pump pressure gauge indicator pump pressure gauge reading range from 120 – 200.
• Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry.
• High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure.
• 1” Feed solenoid valve. Automatically shuts off the feed water to the system.
• Push/Pull fittings with locking safety clips

Benefits:

• Compact Space Saving
• Components Easily Accessible
• Expandable and Lightweight Design
• Fully Equipped and Customizable
• Pre-plumbed, wired and assembled
• Low Operation Costs / Low Maintenance Costs
• Factory Tested and Preserved
• CE Compliant / 1-Year Limited Warranty / Made in the USA

Upgrades:

• Stainless-Steel Rotary Vane Pump
• Concentrate recycle valve
• SWP Digital Dual TDS Controller
• S150 Computer Controller with Feed Flush
• Chemical Pump Outlet / Blending Valve / Permeate Sample Port
• 240V 50-60Hz or 110V 50-60Hz
• Single Wood Crate

Gallons Per Day (GPD) @ 77° F

Need higher capacity or a custom configuration? View our commercial water solutions →
