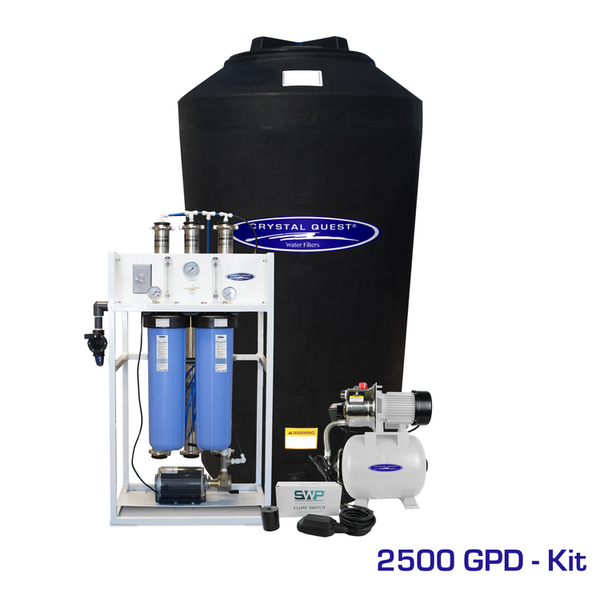

Crystal Quest Commercial R O Filtration System 2500 GPD w/ 165 Gallon Storage Tank Kit - PureWaterGuys.com

Crystal Quest Commercial R O Filtration System 2500 GPD w/ 165 Gallon Storage Tank Kit

Crystal Quest

Item #:

  • $7,33000
McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams

Estimated Arrival: Between Nov 02 and Nov 09.

*Free Shipping. No Hassle Returns. Price Match guarantee Learn More.

*shipping charges may apply to certain over-sized weight or dimension products

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Crystal Quest Commercial R O Filtration System 2500 GPD w/ 165 Gallon Storage Tank Kit

  • Standard Features:

    • Construction: Aluminum white powder coated, corrosion-resistant, and lightweight
    • Stainless steel membrane housing: TFC membrane for maximum rejection of impurity and high flow
    • Brass Rotary Vane High-Pressure Pump designed for continuous use and built-in protection for loss of feedwater protection
    • High-Efficiency Carbonate Motor
    • SWP 316 Stainless steel concentrate valve: to control permeate versus concentrated water
    • SWP Flow meter: to display permeate and concentrated water flow
    • SWP 0-100 psi Pre-filter pressure gage Indicator to aids on timely cartridges change
    • SWP 0-300 psi pump pressure gauge indicator pump pressure gauge reading range from 120 – 200.
    • Low-pressure switch: Automatically shut off RO system motor to avoid pump run dry.
    • High-Pressure Tank Switch: Automatically turns off the RO system at a predetermined storage tank pressure. No need for expensive “plug/play”.
    • 1” Feed solenoid valve. Automatically shuts off the feed water to the system.
    • Push/Pull fittings with locking safety clips

    Benefits:

    • Compact Space Saving
    • Components Easily Accessible
    • Expandable and Lightweight Design
    • Fully Equipped and Customizable
    • Pre-plumbed, wired and assembled
    • Low Operation Costs
    • Low Maintenance Costs
    • Easily Maintenance and servicing
    • Factory Tested and Preserved
    • CE Compliant
    • 1-Year Limited Warranty
    • Made in the USA

    Upgrades:

    All systems include a standard with a wide range of features. There are various options and upgrades available to accommodate a diverse range of water treatment applications. Listed below is a selection of the most popular upgrades.

    • Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
    • Concentrate recycle valve: Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery
    • SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
    • SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
    • SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
    • S150 Computer Controller with Feed Flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display and alarm function.
    • Chemical Pump Outlet: Provide an integrated power source with the RO system for connection of a chemical feed pump.
    • Blending Valve: Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
    • Permeate Sample Port: Allows for evaluation of individual membrane performance in on RO system and aids in system troubleshooting and maintenance.
    • 240V 50-60Hz or 110V 50-60Hz: Allow for selecting sufficient voltage and hertz use requirement.
    • Single Wood Crate

Gallons Per Day (GPD) @ 77° F

500 750 1000 1500 1800 2500 4000 5000 7000
Model CQE-CO-02024 CQE-CO-020024 CQE-CO-02025 CQE-CO-02026 CQE-CO-020027 CQE-CO-02027 CQE-CO-02028 CQE-CO-02029 CQE-CO-02030
Dimensions 14" x 20" x 27" 14" x 20" x 27" 14" x 20" x 27" 14" x 20" x 46" 14" x 20" x 46" 19" x 23" x 46" 19" x 23" x 46" 30" x 38" x 47" 30" x 38" x 47"
Weight (lbs) 140 140 145 160 160 180 235 250 265
Concentrate Re-Circulate Optional Optional Optional Optional Optional Optional Optional Optional Optional
Auto Flush Optional Optional Optional Optional Optional Optional Optional Optional Optional
Membrane Size 2521 TFC HF1 2540 TFC HF1 2521 TFC HF1 2540 TFC HF1 4040 TFC HF1 2540 TFC HF1 4040 TFC HF1 4040 TFC HF1 4040 TFC HF1
# of Membranes 2 1 3 2 1 3 2 3 4
Motor HP 1/2 1/2 3/4 3/4 3/4 3/4 1.5 1.5 1.5
Voltage (volts AC) 110/220 110/220 110/220 110/220 110/220 110/220 110/220 110/220 110/220
Hertz (cycles) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Feed Connection 3/4" 3/4" 1" 1" 1" 1" 1" 1" 3/4"
Product Connection 3/8” 3/8” 3/8” 3/8” 3/8” 3/8” 1" 1" 1"
Waste Connection 3/8” 3/8” 3/8” 3/8” 3/8” 3/8” 1" 1" 1"
Minimum Feed Pressure 45 psi 45 psi 45 psi 45 psi 45 psi 45 psi 45 psi 45 psi 45 psi
Minimum NaCl - % Rejection 96% 96% 96% 96% 96% 96% 96% 96% 96%
Minimum Feed (GPM) 1.5 1.5 1.5 1.5 1.5 4 6 7 10
Maximum Hardness (GPG) 15 15 15 15 15 15 15 15 15
Maximum TDS 2000 ppm 2000 ppm 2000 ppm 2000 ppm 2000 ppm 2000 ppm 2000 ppm 2000 ppm 2000 ppm
Operating Pressure 150 psi 150 psi 150 psi 150 psi 150 psi 150 psi 150 psi 150 psi 150 psi
Maximum NaCl - % Rejection 98.5% 98.5% 98.5% 98.5% 98.5% 98.5% 98.5% 98.5% 98.5%
Maximum Feed (GPM) 3 3 3 5 5 10 15 15 15
pH Range 3-11 3-11 3-11 3-11 3-11 3-11 3-11 3-11 3-11

Dimensions (L x W x H) - Commercial RO’s

GPD Dimensions (L x W x H)
200 GPD 17” x 23” x 35”
300 GPD 17” x 23” x 35”
500 GPD 24” x 25” x 55”
750 GPD 24” x 25” x 55”
1,000 GPD 24” x 25” x 55”
1,500 GPD 24” x 25” x 55”
1,800 GPD 24” x 25” x 55”
2,500 GPD 24” x 25” x 55”
4,000 GPD 31” x 38” x 56”
5,000 GPD 31” x 38” x 56”
7,000 GPD 31” x 38” x 56”
10,000 GPD 31” x 58” x 64”
